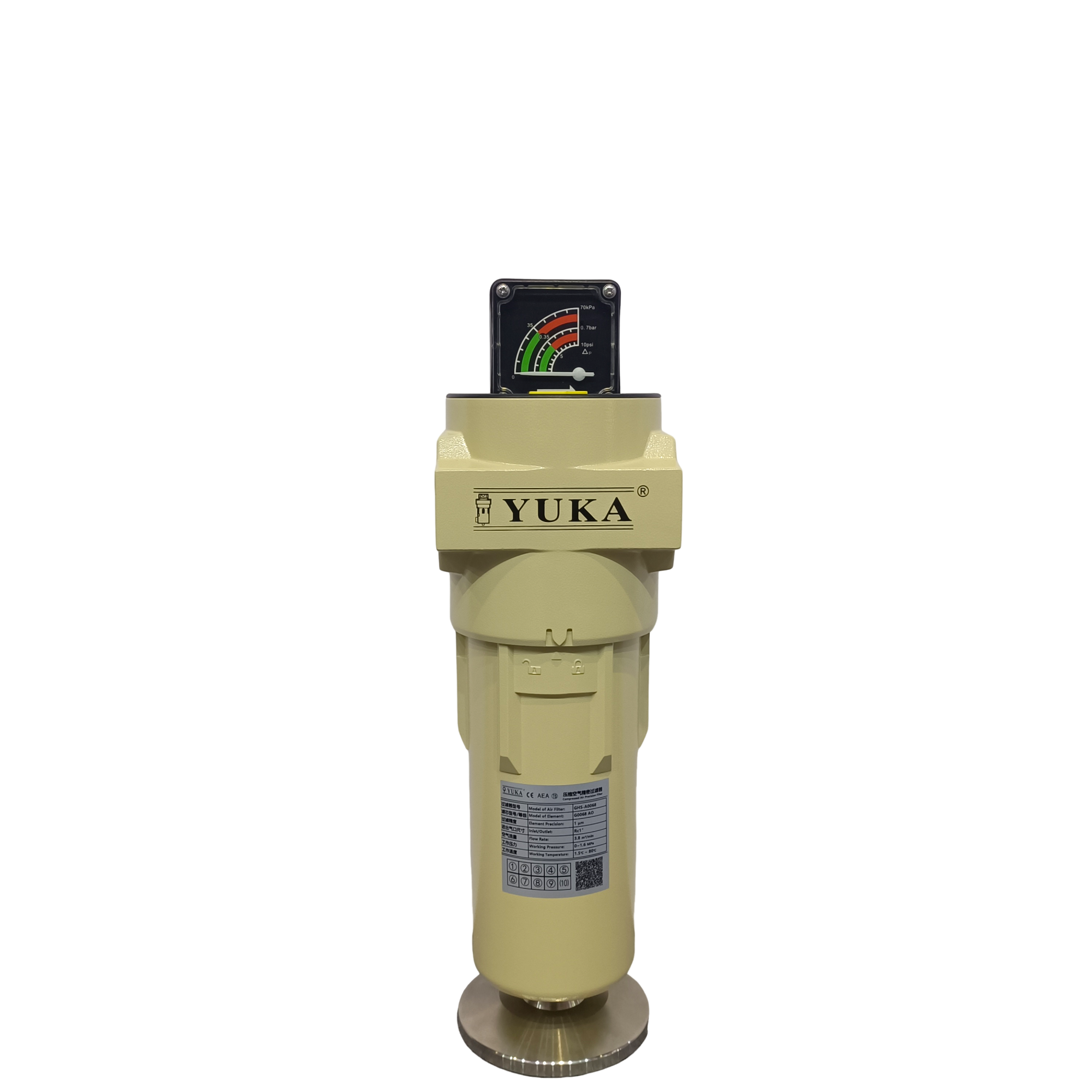

The GHS series Compressed Air Filters are specifically designed for cutting-edge automation applications, including Nitrogen Generators, Oxygen Generators, air compressors, and more. Boasting superior filtration performance, they can enhance your production efficiency across various industries. Selecting the right compressed air filter will not only optimize your operations but also help you cut costs.
PRODUCTS FEATURE
01. lmported filter materials are used, and the filter element material has strong oleophobicity and hydrophobicity, The particle filtration efficiency reaches 99.999%, and the initial wet pressure drop does not exceed 0.2barg;
02.The filter elements have been tested, and the filtration level meets the various performance requirements of ISO8573.1-2010 standard;
03.The filter element adopts a plug-in design, which is convenient and quick to replace the filter element,reducing the installation and maintenance space. The internal support design of the filter bowl ensures that the filter element structure is more solid;
04.The filter housing is die-casted with high-quality aluminum alloy material, with a tight structure. It is cleaned,degreased and specially anti-corrosion treated before spraying to improve the durability of the housing, which can be used in marine platform operations;
05.The stainless steel buckle parallel design has excellent sealing performance and is compact as a whole;
06.Advanced thread processing technology is easyto install and maintain, saving time and effort;
The housing has been subjected to pressure bursting test to ensure safe operation during use,and the maximum withstand bursting pres-sure is not less than 12MPa.The housing is promised to be used for 15 years under rated conditions.
FILTER ELEMENT PRECISION GRADE
PF: As a primary filtration, particles diameter larger than 5μm are removed and the maximum residual oil content is ignored.
AO: Efficient universal protection, removal of dust particles, water mist and oil mist larger than lμm, oil mist residual content does not exceed 0.6mg/m³( 21℃).
AA: Efficient oil removal filter: eliminating particles, water mist, and oil mist larger than 0.0lμm, with residual oil content not exceeding 0.01 mg/m³( 21℃).
AX: Ultra-efficient filtration: eliminating particles, water mist, and oil mist larger than 0.01μm, with residual oil content not exceeding 0.001mg/m³( 21℃).
ACS: Remove oil vapor and odor, the maximum oil vapor allowance does not exceed 0,003mg/m³( 21℃).
AR: Installed at the end of the adsorption dryer to remove dust particles more than 1μm.
AAR: Installed at the end of the adsorption dryer to remove dust particles more than 0.01 μm.
